Discover Tamas Fiber Optics Cable

---

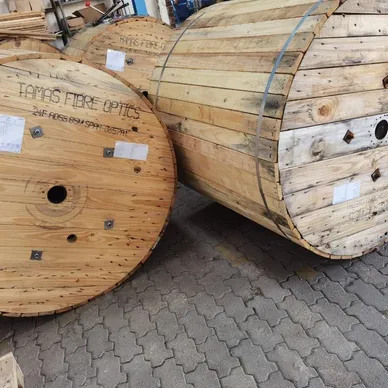

Heavy Duty Duck Fiber Cable is designed to accommodate environments where the installation pf the fiber optic cable might be strenuous. The fibers are positioned in a loose tube manufactured with a modulus plastic. The tubes are filled with a water-resistant filling compound and has a fiber re-enforcement (FRP) located in the centre of the cable as a non-metallic strength member protected by a polyethylene sheath. Heavy duct cable is the ultimate in reliability for riser shafts and or ext.

Retractable cables are used to avoid splices in FttH networks. A tool has been designed for retracting and storing fibre modules from these cables, and jetting the stored modules into branch ducts that make the final drop to the homes. Operation is by one man only and there is no need to install a pulling rope. Retracting, storing and jetting are possible for lengths up to 200 m. The tool can bypass branched modules, allowing installation of up to 4 modules into one branch duct. The tool can work in a confined space, down to 10x15 cm for the indoor version.

ADSS® (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of building a fiber optic network.

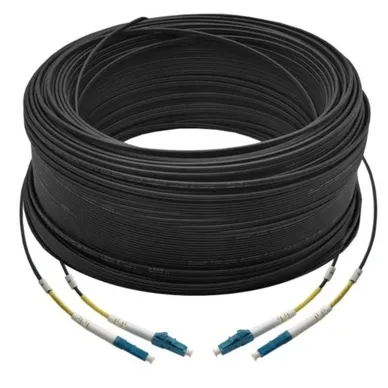

Drop cables, as previously mentioned, are located on the subscriber end to connect the terminal of a distribution cable to a subscriber's premises. They are typicality small diameter, low fiber count cables with limited unsupported span lengths, which can be installed aerially, underground or buried.

Blown fibre optic is a cabling solution using glass fibre optic cables, blown through a ducting pipe. The main ducting pipe can have up to 19 micro ducts contained within it. A Coated “blow able” optical fibre is blown through a micro duct using compressed air.
